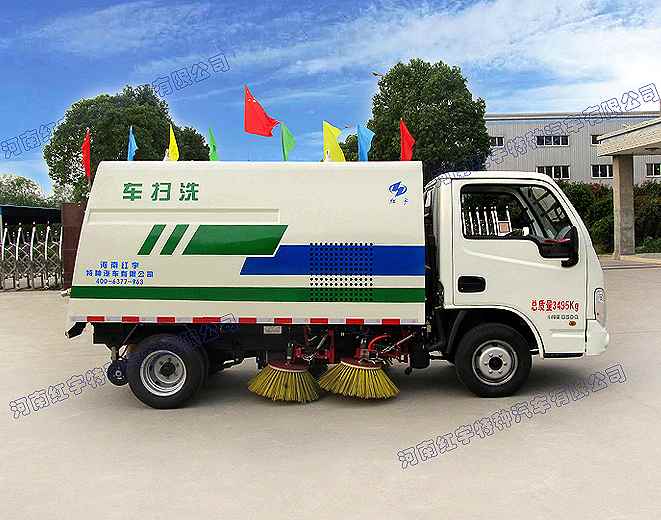

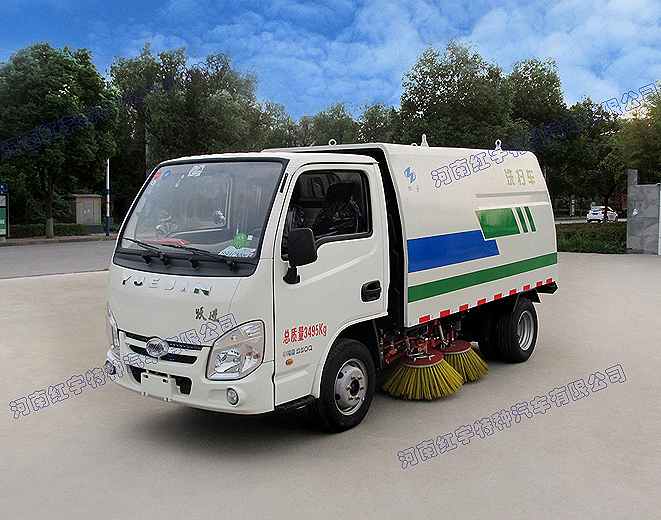

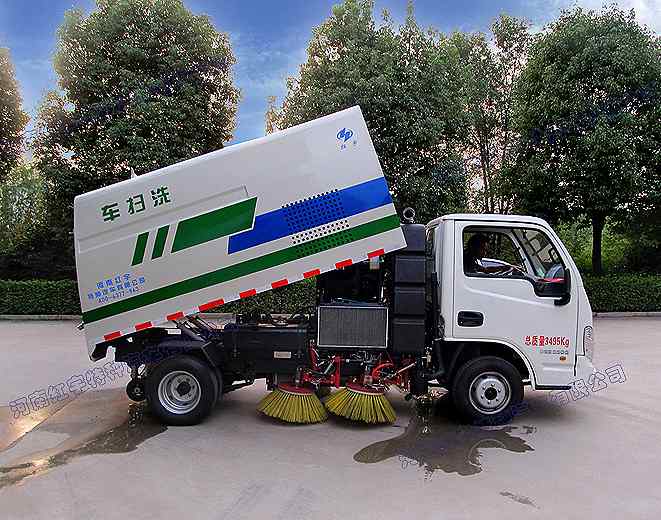

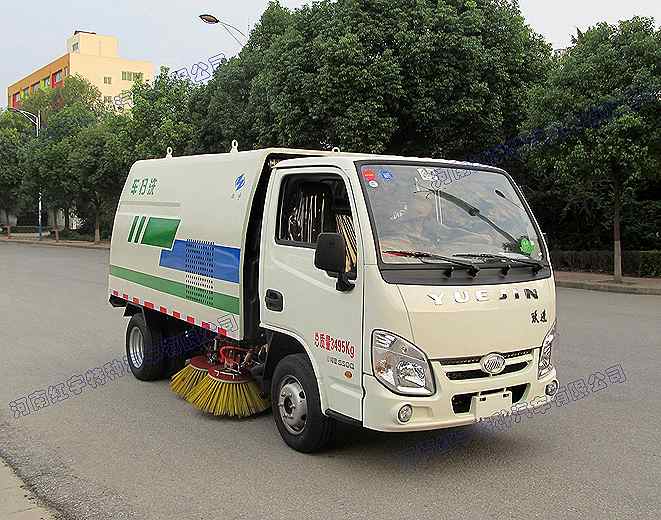

HYZ5030TXS washing the car

HongyubrandHYZ5030TXSisaroadsweeperdevelopedforruralroads,residentialroads,squaresandsidewalks.

  • Product Details
  • Hongyu brand HYZ5030TXS is a road sweeper developed for rural roads, residential roads, squares and sidewalks. The technology of the car is leading, combined with the characteristics of traditional road sweeper and high-pressure cleaning car, with the functions of dust removal, road cleaning, sewage recovery and so on. This car is multi-purpose, it can realize dry sweep, wet sweep, vacuuming, washing sweep and other operation modes independently.


    Product features


    1. The working device is arranged in the form of "middle four-disk sweep + rear suction nozzle + built-in high-pressure main spray rod + left and right high-pressure side spray rod".

    2, clean water tank and dustbin adopt integral stainless steel production, never rust. Clean water tank USES integral plastic structure, dustbin USES stainless steel.



    3. One-key operation intelligent electronic control system. When the operation starts and stops, the secondary engine speed control, suction nozzle lifting and lowering, sweeping plate retracting and releasing, left and right spray rod retracting and releasing and other operation devices are all controlled by one key, which is easy to operate and greatly reduces the possibility of wrong operation.


    There are several job modes to choose from. The system is set up with 6 operating modes including full sweep, left sweep, right sweep, full wash, left wash and right wash.


    Users can choose the appropriate job mode according to the job requirements.


    After the operation mode is selected, press the button to start the operation. All devices that need to participate in the operation will automatically extend and run the operation in the specified order. When it is necessary to stop the operation, one key will stop the operation, and all the operating devices in the work will automatically stop in the specified order and recover to the original state.


    4, using PLC programming, intelligent control system, electrical, hydraulic and pneumatic control, the driver can complete the operation of various actions in the cab.


    5. Multiple automatic protection devices. This cleaning and sweeping vehicle is equipped with automatic protection devices such as water shortage of water tank, tipping and unloading before opening the back door of dustbin prevention, preventing the protective pole from being put down to recover the tipped dustbin, preventing hydraulic oil leakage net, etc., which can protect the vehicle from damage in case of water shortage, full water and other specific working conditions and wrong operation.




    Technical parameters




    Vehicle typeHYZ5030TXSmanufacturerHenan hongyu special vehicle co. LTD
    Chassis modelsSH1032PBGBNZ2manufacturerShanghai automotive commercial vehicle co. LTD
    Engine typeLJ469Q-AE8Engine power (Kw)64
    Engine capacity6700Engine manufacturerLiuzhou wuling liuzhou motor power co. LTD
    Dimensions (length/width/height)4950,4800×1650×2250mmFuel typegasoline
    Total mass (Kg)3495Prepared mass (kg)2890
    Rated load weight (kg)475Cleaning the speed3~10
    Maximum sweep width (m)2.2Maximum cleaning capacity (m2/h)43000
    Maximum suction size60Tank volume (L)370
    Carriage effective volume (m3)2.4Maximum speed (km/h)95
    Number of tires6Tire size185R14 6PR
    To formThe steering wheelEmission basis standardGB3847-2005,GB17691-2005國V
