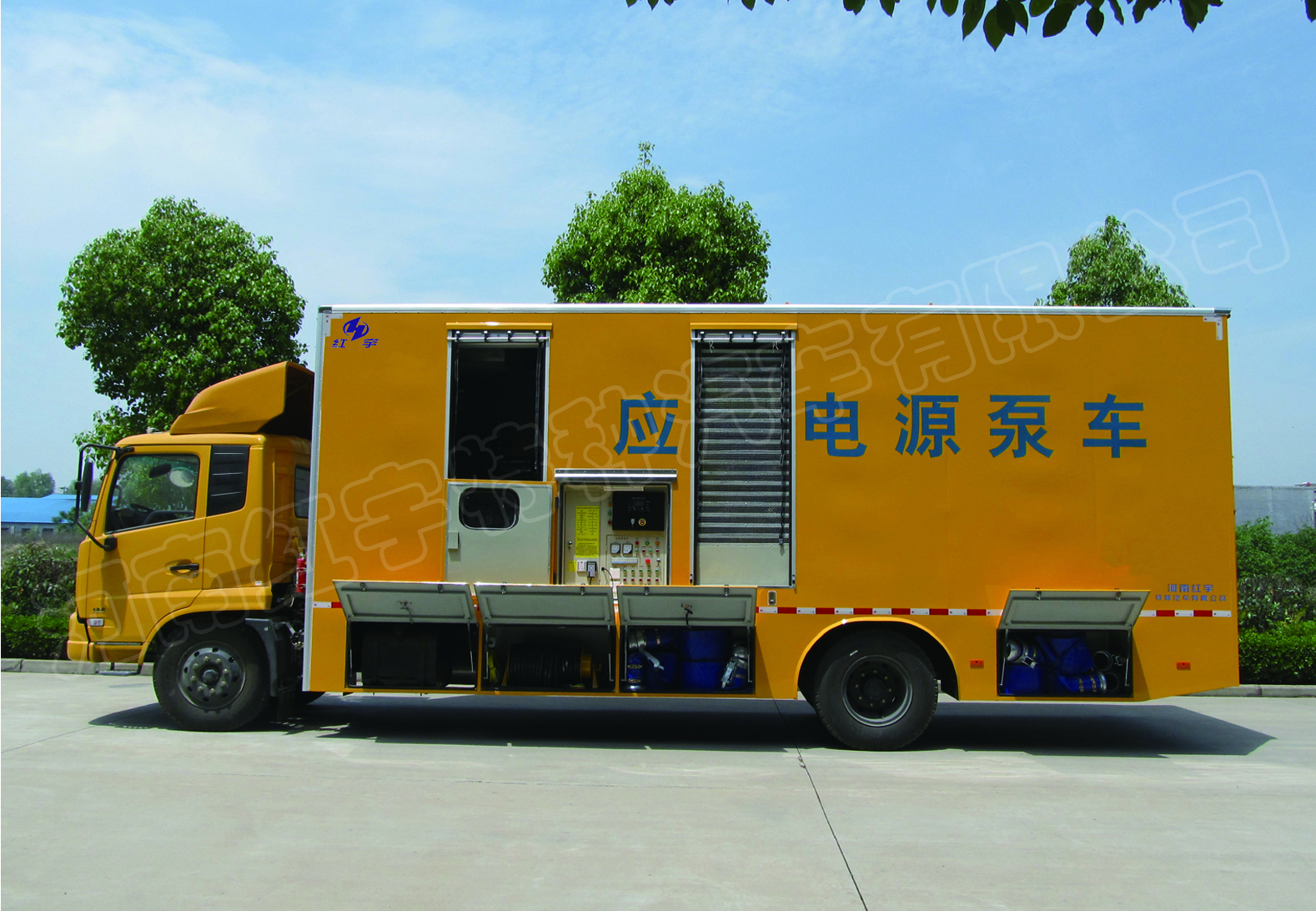

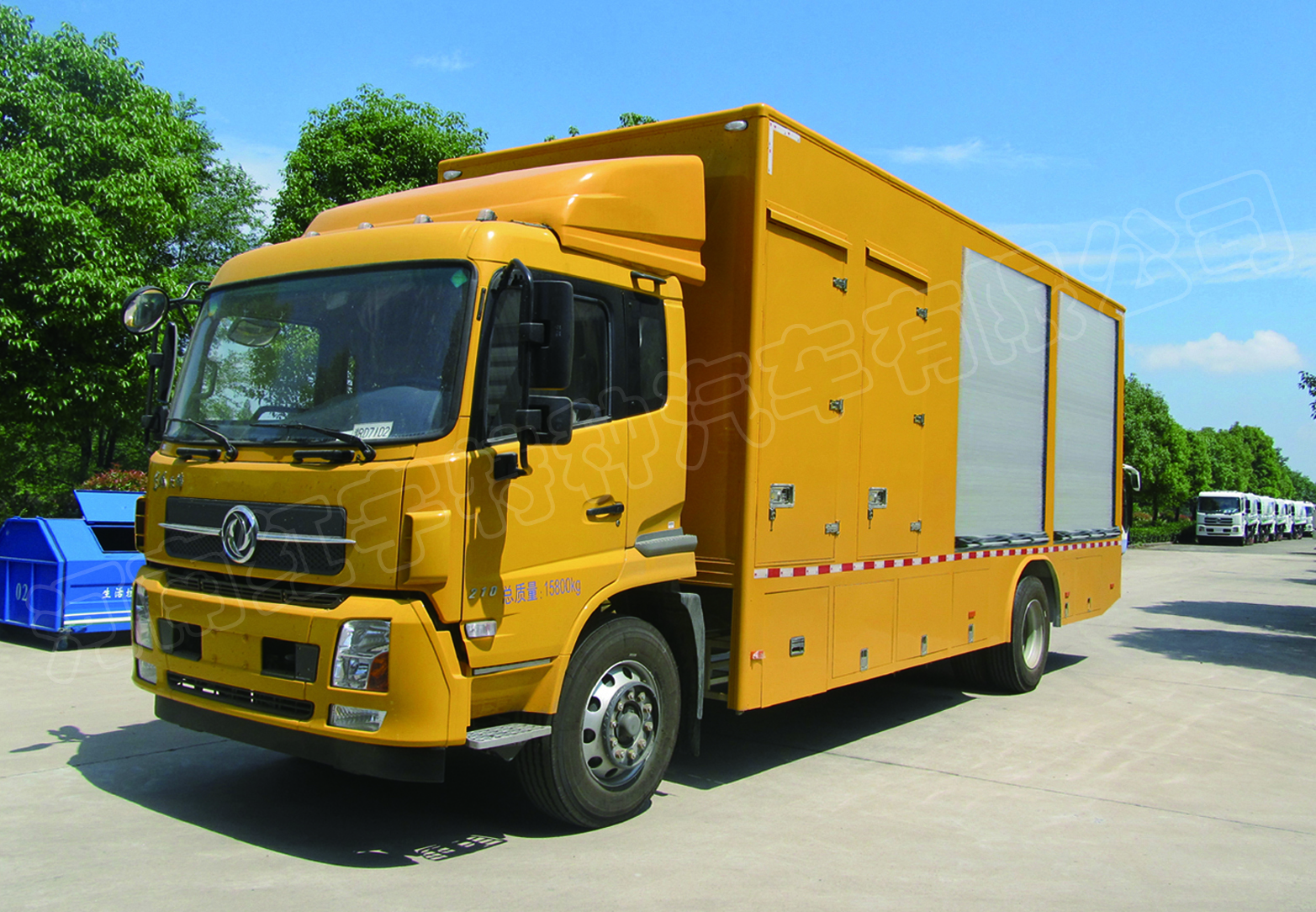

HYZ5160XXH emergency drainage vehicle

Hongyuemergencydrainagevehicleseriesisaspecialvehicledevelopedbyhenanhongyuspecialvehicleco.,ltd.

  • Product Details
  • Product use

    Hongyu emergency drainage vehicle series is a special vehicle developed by henan hongyu special vehicle co., ltd. for drainage operations in urban flood control, municipal drainage, lake drainage and other industries. In case of emergency, it can quickly arrive at the site, and use the vehicle-mounted power supply, vehicle-mounted water pump (dump pump, submersible pump, etc.) to achieve large flow (flow rate of 600-3200m3 /h can be combined) drainage and drainage operations, greatly improving the emergency response capacity, improve work efficiency. The car is mainly composed of class ii automobile chassis, muffler carriage, generator set, electric control system, cable, vehicle-mounted water pump, vehicle-mounted lifting lighting, warning lights and sirens, reversing monitoring, working ladder, tool cabinet and so on. It is a mature type of vehicle, with the ministry of industry and information technology announcement catalogue, irs tax exemption catalogue, ministry of environmental protection announcement and "CCC" certificate, can be yellow card on the road.


    Technical parameters

    Vehicle typeHYZ5160XXHCable and capstanElectric, positive and negative, equipped with 30m long 3 x 50mm2+1 x 25mm2 fire retardant copper cable;
    The total quality15800KgElectro-hydraulic legTwo legs linkage/single leg independent control, wireless remote control and manual control;
    Overall dimensions9995×2495×3850mmExternal power supply unitIt is equipped with four external power sockets to facilitate power collection during construction (220V, 16A two, 380V, 25A two);
    Emission standardsThe V emissionsInterior lightingDc or ac lighting in each cabin, emergency lights
    Chassis modelsDFL5160XXYBX2V class ii vehicle chassis, row halfSafety warning deviceLong row engineering warning lights are installed on the top of cab, with loudspeakers and warning lights;

    power

    132/155KWSafety grounding deviceSingle core 25mm2 length 10m grounding wire and special grounding bit
    Fuel typedieselFire safety device4Kg dry powder fire extinguisher
    Silence down the noise chamberEnvironmental protection, energy saving, flame retardant, silent carriageWorking ladder, working boxFor loading and unloading, hanging down
    Diesel generating setOptional 100-200kw diesel power generator set, with 6-8 hours base fuel tank, water jacket heater, starting battery, etc.;The drainage systemThe flow rate can reach 600-3200m3 /h in combination
    Self-priming pumpLarge flow and strong self-priming vacuum auxiliary self-priming pump, flow 600-1500m3 /h, head 10-15m, suction range 7-9m, motor power 55-90kw;
    Into the wind systemSymmetrical, bidirectional, multistage and multichip sound absorption deviceInlet pipe1 water inlet, diameter 250mm, 5m/piece, 4 pieces, 20 meters in total; Imported light resin pumping pipe, light weight, easy to take, quick eastern joint, good sealing effect, and with a pumping filter;
    Exhaust systemMulti - stage multi - piece radial exhaust duct
    Exhaust systemMultistage compound silencerOutlet pipe2 outlets, diameter 200mm, each outlet 6 rolls, 25 meters/roll, a total of 12 rolls, wear resistance, pressure resistance 10Kg hose, aluminum alloy quick joint;
    Control systemIP44 class protection

    Car lift


    Lighting system

    Adopt electric and remote control control, can hide, tilt, lift and rotate omni-directional lighting, halogen lamp 2*1000W, working height is more than 4.5m, providing large area lighting for field night work;Submersible pumpLight and high speed submersible flood control pump, aluminum alloy pump body, stainless steel pump blade, flow 300m3/h, lift 10 meters, power 15KW, weight 35KG;
    Form a complete set of cableProfessional submersible cable is used. The cable with a length of 50 meters is equipped with a single pump, which is divided into two cables. Quick connector is adopted between the cables.Frequency conversion control cabinetOne control and two frequency conversion control cabinet, modular design, weight less than 50KG, can be used for normal operation of power supply; When the pump works normally, the speed and flow of the pump can be adjusted continuously. ABB low voltage inverter and ABB leakage circuit breaker are adopted.
    Matching jacketThe single pump is equipped with a drainage belt of 50 meters long, which is divided into two sections, each of which is 25 meters long. Two more floats.
