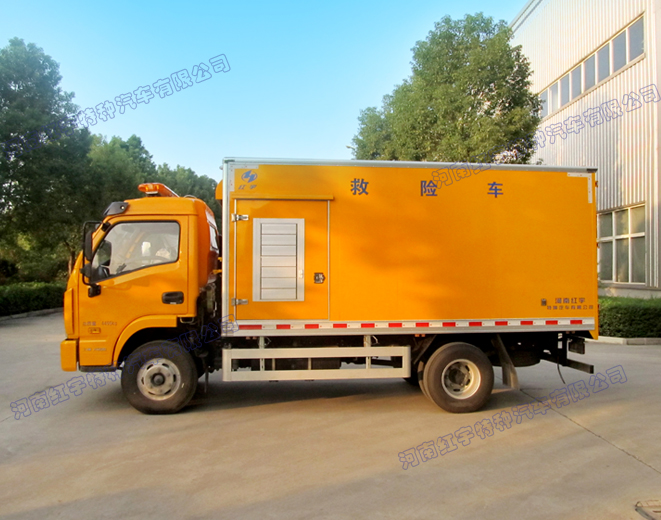

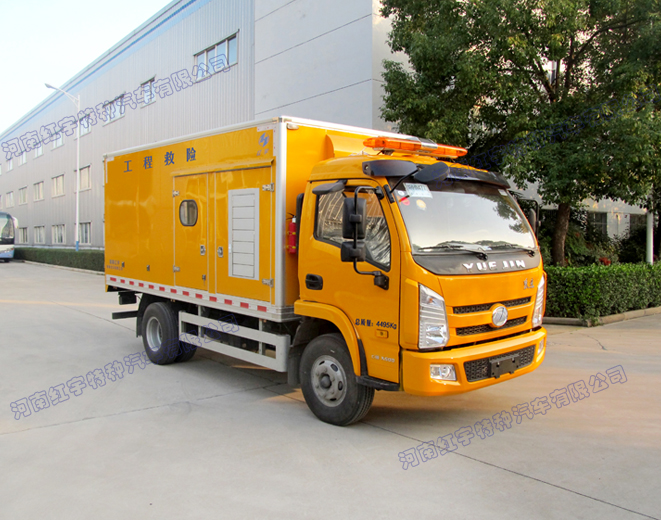

HYZ5042XXH emergency vehicles

Hongyuemergencyvehicleseriesisaspecialvehicledevelopedbyhenanhongyuspecialvehicleco.,ltd.

  • Product Details
  • Products use


    Hongyu emergency vehicle series is a special vehicle developed by henan hongyu special vehicle co., ltd. for the pipe network and road surface quick rescue and repair operations of water supply and drainage, municipal administration, heat, gas, electric power, airport, highway and other industries. In case of emergency, it can reach the site quickly, and most emergency repair operations, such as cutting, dismantling, drainage, pipe welding, etc. can be realized by using vehicle-mounted power supply and vehicle-mounted tools, which greatly improves the emergency response capacity and the efficiency of emergency repair. The car is mainly composed of chassis, silent carriage, generator set, electric control system and special tools. It is a mature type of vehicle, with the ministry of industry and information technology announcement catalogue, the irs tax exemption atlas, the ministry of environmental protection information disclosure notice and "CCC" certificate, can be blue card on the road.



    Technical reference number







    Vehicle typeHYZ5042XXHMobile distribution box30A portable, double circuit zero potential
    The total quality4495KgInside the tool cabinetStainless steel tool cabinet (storage of small emergency repair tools and work clothes, etc.)
    Overall dimensions5995×2030mm,2250×2900mm,3055mmChassis tool boxUnderhanging chassis
    Emission standardsThe V emissionsExtension ladderAluminium alloy two section telescopic working ladder /4.0 m
    Automobile chassisNJ1042KFDCWZ class ii vehicle chassis, SOFIM8140,43DV engine, power 92KW, diesel, national V emission, including air conditioning, diversion cover;Astern monitoring deviceColor LCD monitor, 7 - inch display
    Mute compartments bodyTwo-compartment silent cabinet with lifting cabinet and tool cabinet, including desiccation system, ventilation system, heat insulation system and anti-skid ground plate;Safety warning deviceA long line of flashing (yellow/yellow) lights and sirens
    Generating setIt can be equipped with generator sets of different powers and manufacturers, with 6-8 hours base oil tank, water jacket heater, starting battery, etc.Daily unit fuel tankIt can meet the needs of generator set for 6-8 hours

    Car lift


    Lighting system

    Provide large area lighting for night work, power: 2*1000W, working height 4.5m, electric control, remote control, lifting and rotating, effective lighting distance 80m;Interior lightingDirect current lamps for each warehouse
    Control systemIP44Safety grounding deviceSpecial ground wire and ground anchor assembly
    Winch cableElectric automatic outgoing; Equipped with 3 * 16mm2+1 flame retardant copper cable 30m; Cable connector adopts waterproof quick connector;Fire safety installation2kg dry powder fire extinguisher
    The load car craneArm length 1.2 m, or rotated 180 °, the maximum lifting 400 kg, with two mechanical leg;Special tools
    High pressure cleaning machineElectric, 10L/min (including 80L stainless steel water tank)Electric welding machineZx7-400 IGBT, 400A, output power cord and welding pliers, mask, gloves;
    Fixed distribution boxSix circuit output distribution box, equipped with ac 380V/220V output interface 3 groups each (stainless steel)

    Hydraulic power station


    (internal combustion)

    Optional installation of imported or domestic internal combustion hydraulic power station, power source of hydraulic equipment, including 15m hydraulic pipe;
    Hydraulic crushing pickHydraulic crushing pick, anti-vibration pick body, including one pick with tip/flat pick, used for crushing asphalt and cement concrete;

    Hydraulic power station


    (electric drive type)

    Electric drive type hydraulic power station, power source of hydraulic equipment, including 15m hydraulic pipe;
    Hydraulic slurry pumpHydraulic slurry pump, diameter 4in, flow rate 180m3/h, including 20 meters of water;Hydraulic exhaust fanHydraulic exhaust fan, used for air supply, heat and gas exhaust, including 15m air supply pipe.
